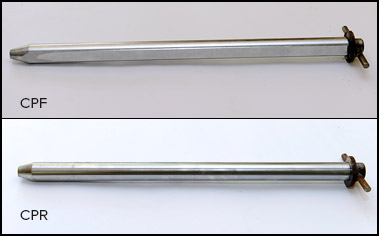

CLOSING PIN ROUND /FLAT

These pins are used to close molding boxes in production line while molten metal is poured.
These pins play important function of holding cope & drag boxes to right location & control Shift of casting .
These pins are designed in different styles of heads to suit verities of molding boxes.

Size & operating length range is given as under

Sr No.	CLOSING PIN ROUND	CLOSING PIN FLAT
1.	19 mm x 5.5’’to 24’’ L	19 A/F x 300mm L
2.	25 mm x 300mm to 800mm L	21 A/F x 300mm to 700mm L
3.	30 mm x 325mm to 600mm L	25 A/F x 325mm to 600mm L
4.	35 mm x 500mm L	32 A/F x 500mm L

Note:- Lengths specified are total lengths. Pins in different lengths are manufactured as per client requirement.
These pins are exclusively in hard chrome platting done. Platting layer is controlled to 0.025 microns on surface
